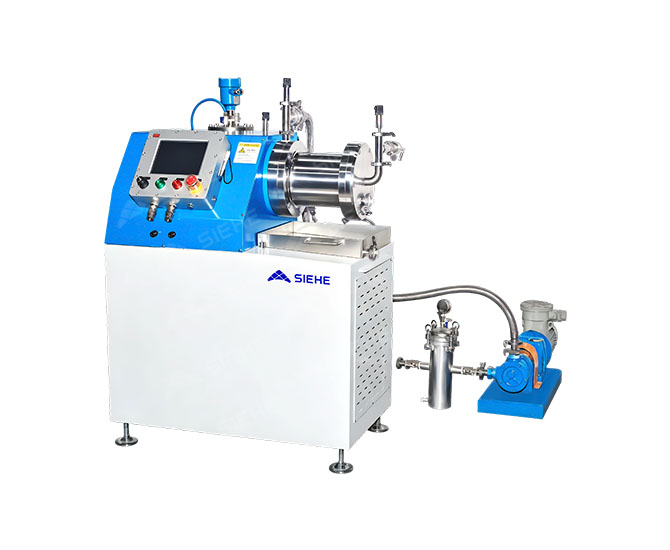

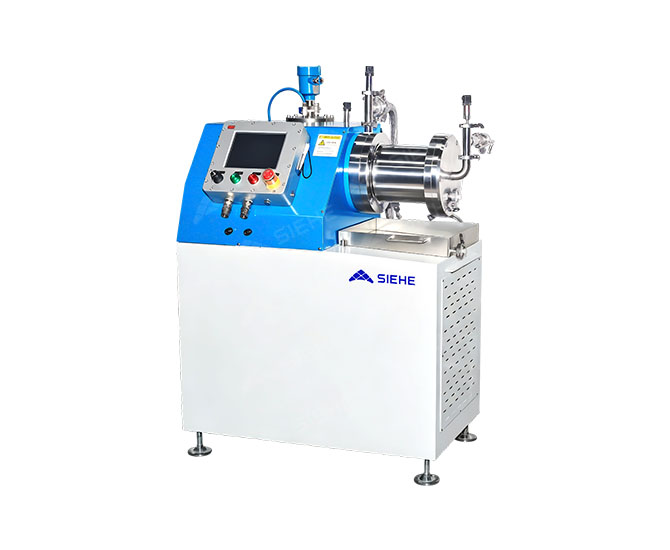

Ultra-fine Pin Type Horizontal Beads Mill

The Ultra-fine Pin Type Horizontal Beads Mill is a continuous production machine for grinding liquid materials. The design of the grinding chamber is with a small length/diameter ratio and high energy density; Adopting external driven screen discharge device, which is with large discharge area; Adopting pin type rotors to force grinding medium to do irregular collision, which greatly improve the grinding efficiency and also make the equipment suitable for grinding high viscosity slurry. Use φ 0.5mm-2.0mm yttrium stabilized zirconium beads (95% zirconium content). The machine is featured in excellent grinding fineness, generally can grind materials down to below 5 microns, and some can reach sub-micron or even nanometer level; The sealing structure adopts double-end mechanical seal equipped with self-lubricating system. The sealing liquid shall be compatible with the material. With German mechanical seal technology, perfluorinated sealing ring, it can withstand multiple solvents. The mechanical seal is with good reliability and durability; The special high wear-resistant alloy steel material ensures the service life of the equipment; Using segmented double spiral cooling jacket is more efficient for heat exchange, which ensures the product final fineness and grinding efficiency, and also ensures the finished product quality.
