Tri-shaft Multi-functional Mixer

Tri-shaft Multi-Functional Strong Power Dispersing Mixer is a powerful dispersing and mixing machine, its regular model is Dual High-speed Dispersing mixer together with anchor type mixer with scraper, has super strong shearing effect and super high mixing efficiency. This machine is especially suitable for mid-and-high viscosity material and thixotropic material; There is a set of high-speed dispersing agitator can be replaced by the mid-speed agitator, and spiral type, paddle type, frame type mixing pattern are optional. Best agitator type is chosen based on material property and production technology.

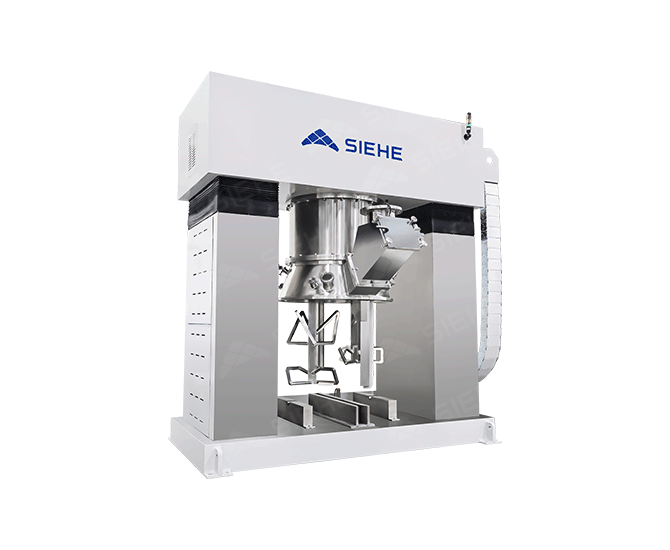

Tri-shaft Multi-Functional Strong Power Dispersing Mixer
Tri-shaft Multi-Functional Strong Power Dispersing Mixer
  • Materials Viscosity
    ≤1,500,000 cps
  • Production capacity
  • Application Industry
    Suitable for dispersing and mixing materials in industries such as coating, putty, adhesive, energy, electronics & electrical appliances, pharmaceuticals, cosmetics, food etc.. (For more application industry, please click “Free Consultation” )
  • Applicable Materials
    Various slurries with viscosity less than 1,000,000cps, solid content under 90% such as battery paste, solder paste, ceramic paste, silicone inks, sealants, structural adhesives, soft cream, jam etc..

Product Advantages

  • High mixing efficiency, good quality
    Tri-Shaft Multi-Functional Strong Power Dispersing Mixer consists of the agitator with scraper and two sets of high (middle) speed dispersing mixer, the three sets of agitators working at the same time to have the materials mixed rapidly under the action of strong shearing and kneading force.
    Various agitators ( usually anchor type, butterfly type etc) are in option based on materials with different viscosity and different specific gravity and different production technology.
  • Safe and convenient operation
    Adopt hydraulic cylinder as lifting actuators. Control the mixer up, stop and down through controlling the valve, simple operation with high stability; with bolt fixing the agitator and the main shaft, easy to disassemble and clean, different clamping mode (belt clamping, manual rotation clamping, pneumatic clamping), can fix the mixing tank rapidly to prevent any possible accident due to tank displacement. .
  • No residue on the wall, clean discharging
    There is scraper on the agitator, it clings to the container and scrape the materials on the wall off continuously. The container inner wall is precisely lathed and then mirror polished to ensure the scraper can scrape all materials sticking to the wall off without residue, improving the mixing effect..
  • Customized options
    Different options are available such as explosion-proof type, closed type, heating type, with PLC intelligent control type, etc.. Material can be customized to be SS316L or special Spraying materials.

Working Principle

Mixing impeller driven by the motor rotates in a fixed direction, which drive the materials to rotate in axial and radial direction; And the materials inside the tank, at the same time, also do axial and circular motion. So materials can be mixed and blended properly with high efficiency. The impeller is equipped with scraper clinging to the container wall to scrape the materials off the wall without residue during the rotation of the impeller, which improve mixing effect significantly.
Through the high-speed rotation dispersing disc, the materials will become in annular form flow, resulting in strong vortex flow, which descend down to the bottom of the vortex in spiral state. During the process, materials are dispersed, dissolved, mixed and emulsified efficiently due to the strong shearing crash and friction among the particles. The dispersing disc produces a good radial power through the circular motion which accelerates the material circulation and improves the dispersion efficiency.
The hydraulic pump drives the hydraulic cylinder ascend and descend, which drives the whole transmission and working set up and down.

Tri-shaft Multi-Functional Strong Power Dispersing Mixer

Recommended Product

Technical Parameter

Model Disperser power (kw) Disperser speed


1# Mixer power (kw) 1# Mixer speed


2# Mixer Power


2# Mixer Speed (rpm) Materials Capacity


Hydraulic Power (kw) Lifting
SJBD-50 2.2 0-2880rpm 1.5 0-85rpm 2.2 0-350rpm Material contacting part SS304 ≤40 1.1 600
SJBD-100 3 0-2880rpm 2.2 0-85rpm 2.2 0-350rpm Material contacting part SS304 ≤80 1.5 700
SJBD-200 7.5 0-1450rpm 4 0-85rpm 4 0-350rpm Material contacting part SS304 ≤160 2.2 800
SJBD-300 11 0-1450rpm 7.5 0-61rpm 7.5 0-250rpm Material contacting part SS304 ≤240 3 900
SJBD-500 18.5 0-1450rpm 11 0-61rpm 11 0-250rpm Material contacting part SS304 ≤400 4 1000
SJBD-800 30 0-1450rpm 18.5 0-52rpm 18.5 0-200rpm Material contacting part SS304 ≤640 5.5 1100
SJBD-1000 37 0-1450rpm 22 0-52rpm 22 0-200rpm Material contacting part SS304 ≤800 7.5 1200
SJBD-1300 45 0-1450rpm 30 0-52rpm 30 0-200rpm Material contacting part SS304 ≤1000 7.5 1300
SJBD-1500 55 0-1450rpm 37 0-41rpm 37 0-160rpm Material contacting part SS304 ≤1300 11 1400
SJBD-2000 55 0-1450rpm 37 0-41rpm 37 0-160rpm Material contacting part SS304 ≤1300 11 1400
SJBD-2000 75 0-1450rpm 45 0-41rpm 45 0-160rpm Material contacting part SS304 ≤1600 11 1600

* Capacity is tested based on the materials viscosity 100,000cps; The model selection shall be based on the data such as the materials viscosity, characteristic etc.
* If the working condition is high temperature, high pressure, flammable, explosive, corrosive or others, you must provide detailed data for our engineer to customize specially.
* If any change in the above table, subject shall prevail without notice.
* The table cannot include all products, please contact with our sales engineers for more information.
