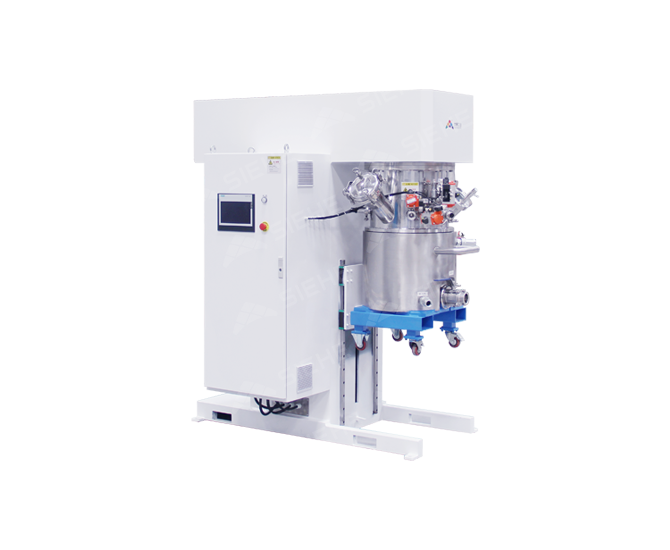

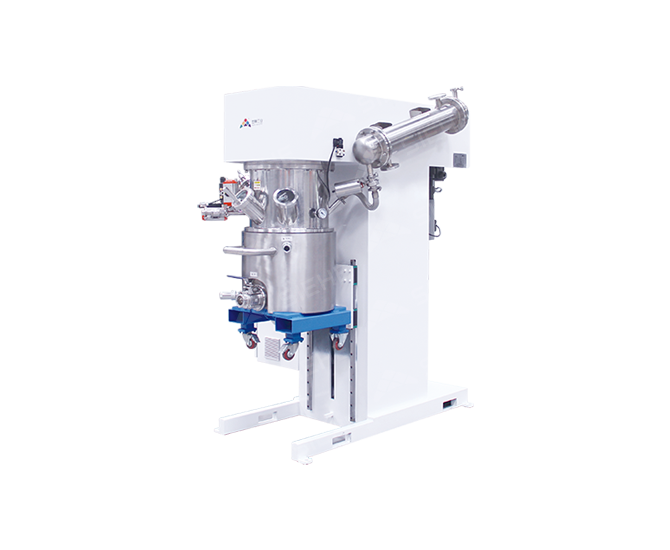

Mid-batch Dual Planetary Mixer
Mid-batch Dual Planetary Mixer is new and high efficient mixing equipment designed for universities, research institute and factory lab. The machine consists of low speed agitator and high speed disperser, has good mixing, reacting, kneading, dissolution effect, especially suitable for the dispersing and mixing of solid-liquid, liquid-liquid phase; It’s quite fit for high viscosity product such as adhesives, silicone, Lithium battery slurry etc. due to its super strong output torque; The equipment has scraper which can scrape the bottom of the tank without corner or residue; also there are extrusion device and sliding rail to work together with this machine, so that realizing the integrated operation of mixing and discharging.
-
Materials Viscosity≤10,000,000 cps
-
Production Capacity30-80L
-
Application IndustrySuitable for dispersing and mixing materials in industries such as coating, putty, adhesive, energy, electronics & electrical appliances, pharmaceuticals, cosmetics, food etc.. (For more application industry, please click “Free Consultation” )
-
Applicable MaterialsVarious slurries with viscosity less than 10,000,000cps, solid content under 90% such as battery paste, solder paste, ceramic paste, silicone inks, sealants, structural adhesives, soft cream, jam etc..
Advantages
-
High mixing efficiency, wide application
The mid-batch dual planetary mixer has two sets of agitators and a set of high speed dispersing shaft revolving around the container axle and at the same time rotating at high speed, so that the materials are mixed rapidly under the action of strong shearing and kneading force. Various agitators (blade type, twist type, claw type, frame type etc) are in option based on materials with different viscosity and different specific gravity.01
-
Safe and convenient operation
Adopt electric or hydraulic lifting, safe and environmental-friendly; the lifting pattern has lifting barrel type and lifting agitator type, with barrel fixing device to prevent any possible accident due to tank displacement. There is sliding rail device between the mixing and extruding tank, convenient for moving tanks, realizing the integrated operation of mixing and discharging.02
-
No residue on the wall, clean discharging
There is scraper on the planetary frame rotating together with the planetary frame, it clings to the container and scrape the materials on the wall off continuously. The container inner wall is precisely lathed and then mirror polished to ensure the scraper can scrape all materials sticking to the wall off without residue, increasing the mixing effect.03
-
Customized options
Different options are available such as explosion-proof type, closed type, heating type, with PLC intelligent control type, etc.. Material can be customized to be SS316L or special Spraying materials.04
Working Principle
The Mid-batch Dual Planetary Mixer consists of decelerator, planetary frame, agitator, scraper, container, hydraulic lifting system as well as stand etc..The rotating planetary frame drives the mixing and dispersing shafts (optional) to revolve around the container axial direction and also to rotate at a high-speed at same time to put the materials under strong shearing and kneading force, so the materials are dispersed and mixed thoroughly. The scraper attached to the planetary frame rotates together with the planetary frame. It clings to the container wall and scrape the materials off the wall continuously. The container inner wall is precisely lathed and then mirror polished to ensure the scraper can scrape all materials sticking to the wall off without residue, increasing the mixing effect.
Related Machine
Technical Parameter
| Model | Working Volume | Design Volume | Mixer Power | Revolution Speed | Rotation Speed | Disperser Power | Disperser Speed | Lifting Stroke | Vacuum Pump Power | Weight Dimension |
| (L) | (L) | (kw) | （rpm） | （rpm） | (kw) | （rpm） | （mm） | （kw） | （mm） | |
| SXJB-30 | 30 | 40 | 4-7.5 | 0-60 | 0-1128 | 5.5-7.5 | 0-2930 | 450 | 1.5 | 900kg |
| 1300*900*1700 | ||||||||||
| SXJB-50 | 50 | 68 | 5.5-11 | 0-60 | 0-128 | 7.5-11 | 0-1450 | 550 | 1.5 | 1200kg |
| 1400*950*1800 | ||||||||||
| SXJB-80 | 80 | 107 | 7.5-11 | 0-60 | 0-128 | 7.5-15 | 0-1450 | 600 | 1.5 | 1600kg |
| 1500*1000*2000 |
Note:
*Capacity is tested based on the materials viscosity 200,000cps; The model selection shall be based on the data such as the materials viscosity, characteristic etc.
* If the working condition is high temperature, high pressure, flammable, explosive, corrosive or others, you must provide detailed data for our engineer to customize specially.
* If any change in the above table, subject shall prevail without notice.
* The table cannot include all products, please contact with our sales engineers for more information.
