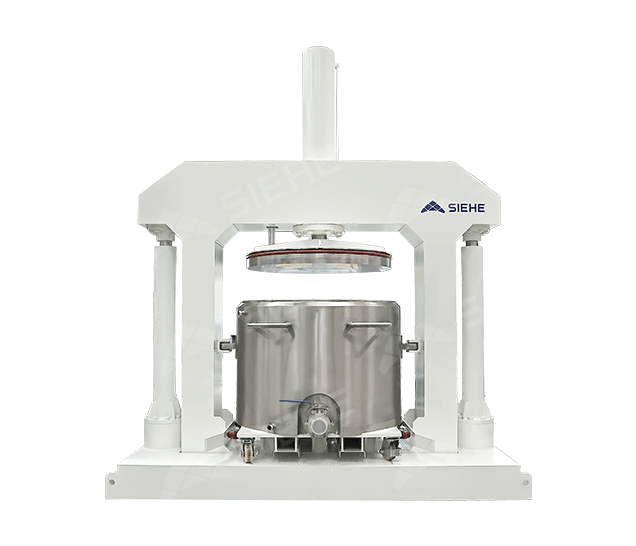

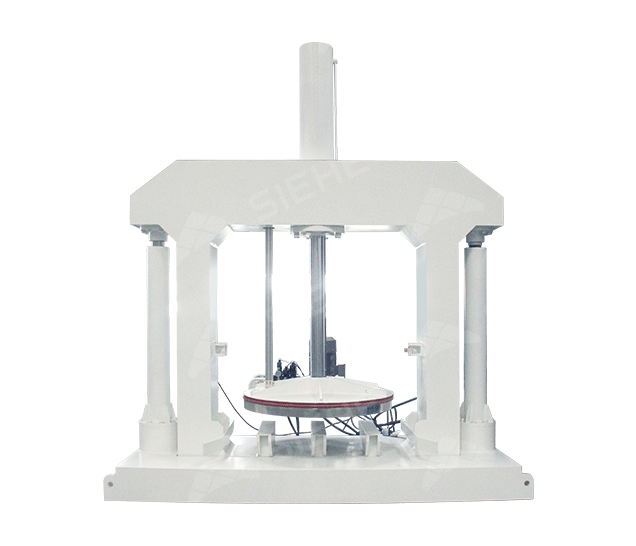

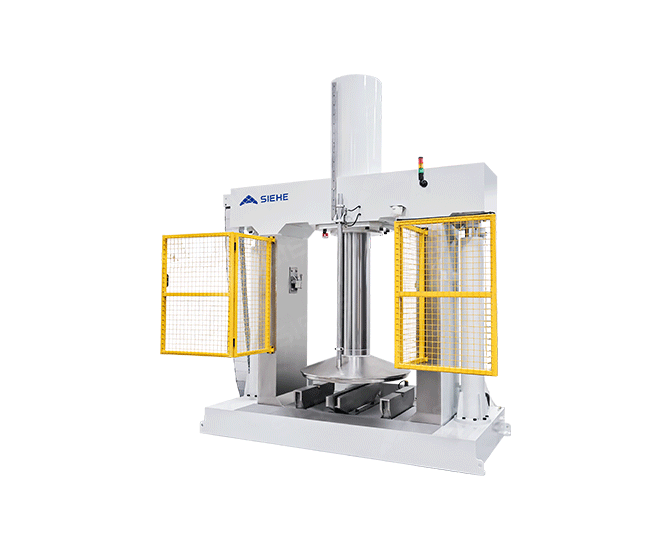

Extruder (Discharging machine)
Extrusion (Discharging machine) is corollary equipment for Powerful Double Planetary Dispersing Mixer or Multi-functional Dispersing Mixer. Its role is to discharge or pack the mixed high viscosity materials. It has single cylinder type and dual cylinder type, driven by hydraulic (Driven by air is also possible if required.). It can deliver the materials (Ink, adhesive, silicone sealant etc.) to the pipeline from the pressing plate or the bottom of the tank by the pressing plate to realize all kinds of packing for different materials. The equipment is divided into tank lifting type and tank fixed type.
- Materials Viscosity5,000,000 cps
- Production Capacity30-2000L
- Application IndustrySuitable for discharging the materials in industries such as coating, putty, ink, adhesive, energy, electronics & electrical appliances, pharmaceuticals, cosmetics, food etc.. (For more application industry, please click “Free Consultation” )
- Applicable MaterialsVarious slurries with viscosity less than 5,000,000cps, solid content under 90% such as battery paste, solder paste, ceramic paste, silicone inks, sealants, structural adhesives, soft cream, jam etc..
Advantages
- Safe and convenient operation Adopt hydraulic cylinder as lifting actuators. Control the extruder up, stop and down through controlling the valve, simple operation with high stability; with barrel holding device for fixing the mixing tank rapidly to prevent any possible accident due to tank displacement. Interlock between the tank in place and machine running can be set to avoid mal-operation.01
- Wide application, high discharging efficiency Extruder can press the high viscosity material to next producing process within only a few minutes, the viscosity they deal with can be varied from ten thousands to millions cps; Using couples of container and presser at the same time, increased the machine using efficiency a lot.02
- Clean discharging The extruder is equipped with seal ring which is matching the tank perfectly, during the pressing process, the seal ring cling to the wall of the tank tightly, no residue.03
- Customized options Different options are available such as explosion-proof type, closed type; According to discharging pattern and height of the discharge port, can customize lifting with tank extruder, material of the machine can be customized to be SS316.04
Working Principle
Hydraulic extruder consists of baseboard, barrel positioning, hydraulic oil cylinders, beams, motor, gear pump, pressing plate, electric control cabinet etc..The hydraulic cylinder can be adjusted within the range of 0-20MPa, the piston rod can stay in any position, and can work continuously under fixed and stable pressure; The seal ring of the pressing plate clinging to the inner wall of the tank (could customize with vacuum defoam device) makes the material not coming out and no residue; The lifting support is hydraulically lifted to the top position, so that it’s convenient for workers to pack. The extruder is characterized by its simple structure and convenient operation.
Recommended Commodities
Technical Parameter
| Model | Hydraulic motor power (kw) | Pressing plate dia. （mm） | Pressing stroke （mm） | Lifting stroke （mm） | Pressing pattern | Gage pressure （Mpa） | Pressing plate pressure （T） | Equipment material |
|---|---|---|---|---|---|---|---|---|
| SYC-30 | 2.2 | 350 | 450 | Single-column hydraulic | 6.3-16 | 15 | Material contacting part SS304 | |
| SYC-50 | 2.2 | 400 | 550 | 无 | Single-column hydraulic | 6.3-16 | 15 | Material contacting part SS304 |
| SYC-100 | 3 | 550 | 600 | 700 | Double-column hydraulic | 6.3-16 | 25 | Material contacting part SS304 |
| SYC-200 | 4 | 650 | 750 | 700 | Double-column hydraulic | 6.3-16 | 30 | 物料接触SS304不锈钢 Material contacting part SS304 |
| SYC-300 | 4 | 750 | 800 | 700 | Double-column hydraulic | 6.3-16 | 50 | Material contacting part SS304 |
| SYC-500 | 5.5 | 900 | 900 | 800 | Double-column hydraulic | 6.3-16 | 65 | Material contacting part SS304 |
| SYC-800 | 7.5 | 1050 | 1100 | 1000 | Double-column hydraulic | 6.3-16 | 80 | Material contacting part SS304 |
| SYC-1000 | 11 | 1100 | 1200 | 1000 | Double-column hydraulic | 6.3-16 | 100 | Material contacting part SS304 |
| SYC-1200 | 15 | 1200 | 1200 | 1100 | Double-column hydraulic | 6.3-16 | 120 | Material contacting part SS304 |
| SYC-1500 | 18.5 | 1300 | 1300 | 1100 | Double-column hydraulic | 6.3-16 | 150 | Material contacting part SS304 |
| SYC-2000 | 22 | 1400 | 1400 | 1100 | Double-column hydraulic | 6.3-16 | 200 | Material contacting part SS304 |
*Capacity is tested based on the materials viscosity 300,000cps; The model selection shall be based on the data such as the materials viscosity, characteristic etc.
* If the working condition is high temperature, high pressure, flammable, explosive, corrosive or others, you must provide detailed data for our engineer to customize specially.
* The above data and images are subject to change without notice, the correct parameters in kind prevail.
* The table cannot include all products, please contact with our sales engineers for more information.
