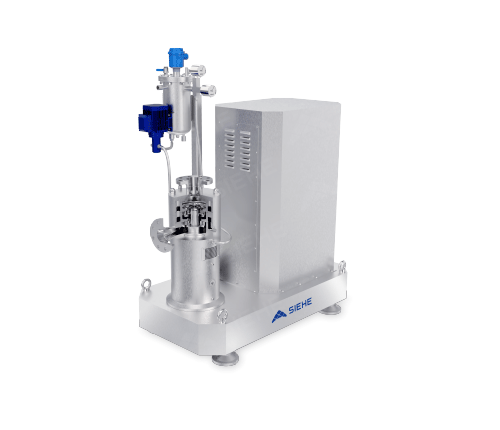

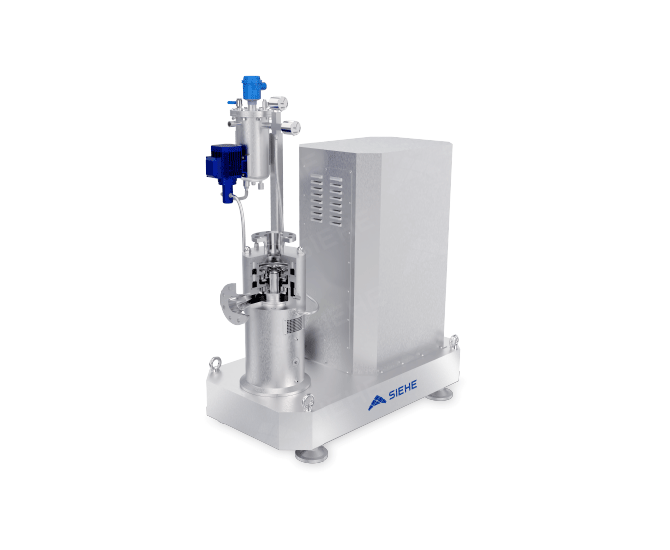

SDRS Ultra-High-Speed Continuous Emulsifier
The SDRS series is an ultra-high shear emulsifier with precision geometrically designed stator and rotor, generating a high linear speed of over 40 m/s during operation, thereby achieving an extremely high shear rate (up to 190,000 1/S). The uniquely designed stator/rotor generates powerful energy input during high-speed operation, making it suitable for fine grinding processes or the production of high-precision emulsions/suspensions requiring final particle sizes as small as submicron level (<1 μm).This series of equipment is particularly suitable for applications that require extremely high homogenization emulsification accuracy and product stability, and is widely used in biomedicine, nanomaterials, high-end cosmetics, precision chemicals, and high-performance materials.
-
Viscosity≤20,000 cps
-
Capacity60m³/h
-
Application AreasSuitable for dispersion, emulsification, and homogenization of materials in industries such as biology, pharmaceuticals, food, coatings, inks, textile auxiliaries, cosmetics, lubricants, and pesticides. (For more application areas, please click "Free Consultation")
-
Applicable MaterialsIt can be used in processes where solids and liquids, or liquids and liquids are mixed to form solutions, colloids, suspensions, or emulsions; it can be used for more than a thousand materials, including juices, soups, dairy products, tissue homogenates, cosmetics, surfactants, asphalt, emulsifiers, and oilfield chemicals.
Product Advantages
-
Easy to operate
Can be used with pipe or container inlets/outlets, easy to install, good conveying capacity, no need for additional conveying pump.01
-
(2)High efficiency and good product quality
The equipment has a linear velocity of over 40m/s, which can quickly and evenly distribute one phase into another or more phases, achieving fine homogenization, dispersion, and emulsification effects. The final product is stable and not prone to stratification.02
-
High processing precision
The rotor and stator are made of forged materials and machined by CNC machining center. The rotor-stator gap is extremely small, with good shear limit fineness and high emulsification and dispersion efficiency. At the same time, nanomaterials can be sprayed to improve the service life of the product.03
-
Strong non-standardization
The material can be customized according to requirements, such as SS304, SS321, SS316L stainless steel or titanium alloy and other unconventional materials; mechanical seals and pressure balance tanks can be configured to meet pressurized working conditions; explosion-proof equipment can be customized.04
Working Principle
The SDRS series is an ultra-high shear emulsifier. Its working chamber contains two sets of rotors and stators, precisely fitted and matched. A motor drives the intermediate shaft to rotate at high speed, creating a vacuum between the rotor and stator. Material is drawn into the rotor-stator chamber through the inlet. The powerful kinetic energy generates extremely high linear velocity in the rotor, causing the material to undergo intense impact, crushing, centrifugal extrusion, liquid layer friction, and strong shearing between the rotor and stator before being ejected. Under the action of forces in multiple directions, strong turbulence is generated, and the material flows out from the outlet. This process instantly and uniformly disperses and emulsifies immiscible solid, liquid, and gaseous media. The equipment can undergo multiple cycles to ultimately obtain a stable, high-quality product.
Recommended Product
Technical Parameter
| Model | Capacity
[L/H] |
Motor Power
[KW] |
Speed
[RPM] |
Linear Velocity [m/s] |
| SDRS -05 | 700 | 5.5 | 10500 | 40 |
| SDRS -10 | 2500 | 15 | 7300 | 40 |
| SDRS -20 | 7000 | 37 | 4900 | 40 |
| SDRS -30 | 20000 | 75 | 2850 | 40 |
| SDRS -50 | 40000 | 200 | 2000 | 40 |
*The pump flow rate generated by the machine itself is calculated using H₂O as the medium, and the machine is configured with a standard emulsifier head.
