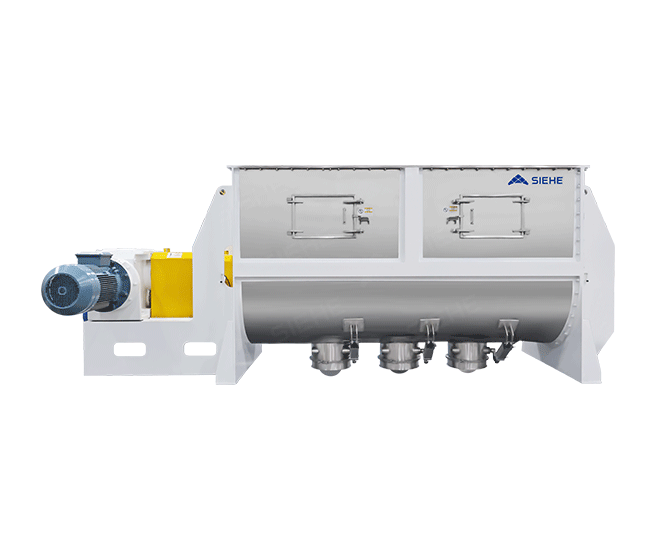

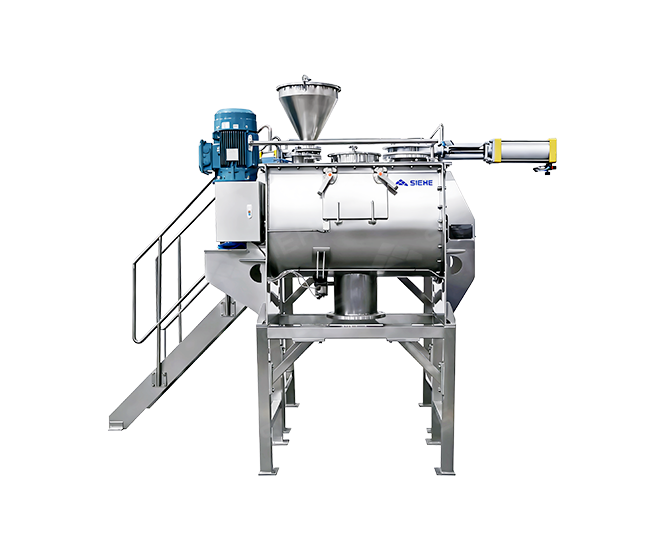

Horizontal Ribbon Mixer
Horizontal ribbon mixer is a late-model mixing equipment with high efficiency, high uniformity, high loading coefficient but low energy cost, low pollution and low crush. The special design of double ribbon mixer the materials into high uniformity in a few minutes. On the other hand, ribbon mixer shows a wide application from powder mixing, powder-liquid, to paste or materials in high specific gravity (such as putty, really stone paint, metal powder and other materials) and becomes one of the most popular single shaft horizontal mixing equipment.
-
Materials Specific Gravity≤5g/cm³
-
Production Capacity50-30,000L
-
Application IndustrySuitable for the material mixing of pharmacy, food, pesticide, chemical industry, plastic, ceramic, paint, putty, mortar and etc. (More information please click FREE CONSULTATION)
-
Applicable MaterialsPowders, paste and particles with fluidity whose specific gravity is up to 5g/cm³, liquid content is up to 70%, such as medical intermediate, flavoring, pesticide, reactive dyes, putty, anticrack sludge, really stone paint and etc material.
Product Advantages
-
Wider Application, Less Crush
The special design of double ribbon is suitable not only for powder mixing but also powder-liquid, paste mixing or the materials with high viscosity or specific gravity(such as putty, really stone paint, metal powder and etc material). The designed radial speed of ribbon ranges from 1.8-2.2m/s, therefore, this is a flexibility mixing which have a low material destructiveness.01
-
Higher Stability, Longer Service Life
All the main components of the equipment are international famous products with good quality. Reducer takes use of K series Spiral cone gear reducer with high output torque, low noise, long service life and small oil leakage. Discharging valve are designed with the same radian with cylinder to ensure no discharging dead zone. In addition, the special design of valve.02
-
Higher Loading Rate, Better Sealing
The angle of mixing cylinder are designed according to materials characteristics ranges from 180º-300º and the largest loading is 70%. Different sealing method are in option. As for ultrafine powder, pneumatic + packing seal are used as it improves sealing service time and effects to large extent. On the other hand, in terms of materials with good fluidity, mechanical seal is the optimized choice which can meet the requirement of different operation condition.03
-
Full Specification
Products can be customized in different specifications, such as mixer with spray, vacuum system, cover support, heating system, ex-proof, break ribbon and etc in SS304 or ss316. Lining of cylinder can be polyurethane or spraying wear-resistant material. In terms of valves, plum blossom valve, butterfly valve, flap valve, ball valve and etc. are in option.04
Working Principle
Horizontal ribbon mixer consists of drive disk assembly, double layer ribbon agitator, U-shape cylinder. Inside ribbons move materials toward the ends of the ribbon blender whereas the outside ribbons move material back toward the center of the ribbon blender, therefore, materials get fulling mixing. Materials flow direction are determined by ribbon angle, direction, twining method. Material outlet are located in the middle of cylinder bottom. Outside ribbon driven by main shaft moves materials to discharging to ensure no discharging dead zone.
Recommended products
Technical Parameter
| Model | Power (kw) | Speed
(rpm) |
Thickness
(mm) |
Capacity
(L) |
Size | Weight
(kg) |
||
|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | ||||||
| SHLD-0.1 | 3 | 60 | 4 | 30-60 | 1500 | 500 | 700 | 400 |
| SHLD-0.2 | 4 | 60 | 4 | 60-120 | 2000 | 600 | 900 | 600 |
| SHLD-0.3 | 5.5 | 41 | 4 | 90-180 | 2000 | 700 | 1000 | 800 |
| SHLD -0.5 | 7.5 | 41 | 5 | 150-300 | 2500 | 800 | 1400 | 1200 |
| SHLD -1 | 11 | 33 | 5 | 300-600 | 2700 | 1000 | 1450 | 1800 |
| SHLD -2 | 15 | 33 | 5 | 600-1200 | 3400 | 1200 | 1700 | 2300 |
| SHLD -3 | 18.5 | 33 | 6 | 900-1800 | 3800 | 1300 | 1950 | 3200 |
| SHLD -4 | 22 | 26 | 6 | 1200-2400 | 4100 | 1400 | 2000 | 4000 |
| SHLD -5 | 30 | 26 | 6 | 1500-3000 | 4200 | 1500 | 2000 | 4500 |
| SHLD -6 | 37 | 26 | 6 | 1800-3600 | 4500 | 1700 | 2100 | 6000 |
| SHLD -8 | 45 | 20 | 6 | 2400-4800 | 5000 | 1800 | 2200 | 7000 |
| SHLD -10 | 55 | 20 | 8 | 3000-6000 | 5000 | 1900 | 2500 | 8000 |
| SHLD -15 | 90 | 20 | 8 | 4500-9000 | 6500 | 2100 | 2800 | 9800 |
| SHLD -20 | 110 | 18 | 8 | 6000-12000 | 7500 | 2400 | 3000 | 13000 |
| SHLD -30 | 132 | 16 | 10 | 9000-18000 | 9000 | 2600 | 3500 | 18000 |
* The above listed Max. processing capacity is calculated as per powder with specific gravity 1 as medium. The model selection should depend on the comprehensive factors such as
materials viscosity, specific gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc, correct data is required for correct model selection.
* The above data and picture is subject to change without notice. The accurate parameter should be subject to the object.
* Not all products are listed. For more information, please contact our sales engineer.
