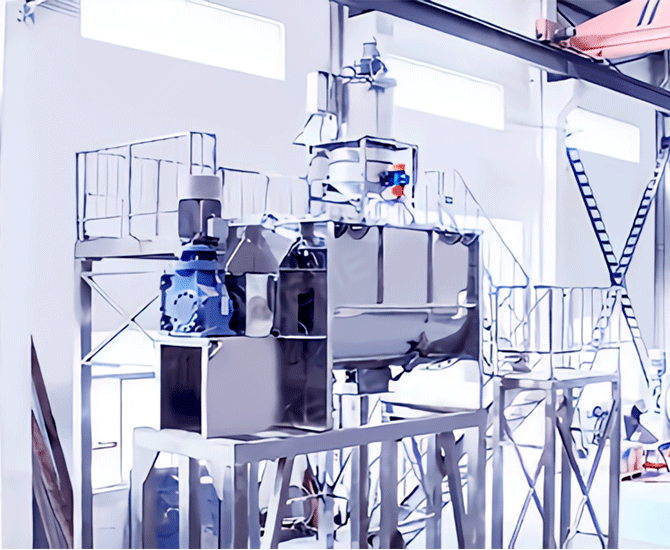

Food and Food Additive Production Line

SIEHE Industry pay attention to the R&D of safety and healthy food additives, especially provides complete sets of equipment for food and food additive industry and project contracting services. Our products comply with GMP requirements. The mixing equipment is the center of food and food additive production complete sets and it will choose different mixer and its additional features according to different technical requirements; The pre-mixing period equipment including: raw materials processing system (unpacking, feeding, crushing, screening, drying, etc.), raw material conveying system, raw material storage system, batching system and if necessary in the middle storage system, etc.; After mixing period of equipment including: semi-finished products processing system (screening, cooling, drying, etc.), caching system finished product, finished product conveyor system, the storage system for the final product, finished product processing before packaging system (screening, metal detection filter, etc.), finished product packing system, finished product stacking system, etc.; It also including the steel structure platform, dust removal system if the system need; It will provide different degree of automation of electric control system According to the customer requirement .

Food and Food Additive Production Line
Food and Food Additive Production Line
Food and Food Additive Production Line
  • Raw Material Properties
    Powder and powder, powder and granule, powder mixed with a small amount of liquid
  • Production Capacity
    150T～3000T/year
  • Application Industry
    Suitable for different kinds of food and food additive production . (For more application industry, please click “Free Consultation”)
  • Applied Materials
    Suitable for chocolate, flour, gourmet powder, rice pudding powder, coffee and other food, preservative, nutrition enhancer, bleach, colouring agent, emulsifier, thickener, acidity regulator, sweeteners etc food additive .

Product Advantages

  • High professional
    Siehe Industry has rich experience in fine chemical production, and at the same time has a wide range of production lines, which basically covers all equipment required for deep processing in fine chemical industry; We provide customers with fine chemical production equipment mainly consist of raw material storage, transportation, ingredients, mixing, finished product storage, screening, demagnetization, packaging, dust and other related equipment.
    01
  • Strong mixing function, complete specifications
    Siehe Industry in a mixing system has a very high professional degrees, and more than ten years of experience in product development, innovation and application has solved many customers’ problem. Our core mixing products include: double helix cone mixer, horizontal ribbon mixer, horizontal plough mixer, horizontal non-gravity mixing machine, V/double cone mixer, three-dimensional mixing machine, etc. We have wide product variety and complete specifications, and can select most suitable models according to the production capacity, environment and production process.
    02
  • High stable system
    The Siehe Industrial purchase high quality industrial products form global well-known companies. The motor select Siemens/ABB products, frequency converter choose Emerson/Schneider products, weighing choose Mettler Toledo products, pneumatic components choose Festo products, electrical components use Schneider products, and the PLC touch screen adopt Siemens products, to ensure the accuracy and stability of the production system.
    03

Working Principle

Raw material ——→ unpacking (small bags and tons of bags) ——→ raw material pre-treatment (crushing/screening/dry) ——→ raw material storage ——→batching system (incremental method and gravity method) ——→ mixing system ——→ finished product storage ——→ finished product packing system——→ finished products

Food and Food Additive Production Line
Food and Food Additive Production Line

Recommended products

Toz Silo Yardımcı Ekipmanları
Toz Silo Yardımcı Ekipmanları
Gypsum Powder Complete Production Line
Gypsum Powder Complete Production Line
Powder Metallurgy Complete production Line
Powder Metallurgy Complete production Line
Powder Storage and Automatic Batching System
Powder Storage and Automatic Batching System

Technical Parameter

System composition Function Optional Devices Remarks
Raw material storage system Unpacking and feeding Small bag feeding station, ton bag feeding station, Unpacking and feeding station for both small bag and ton bag, automatic small bag feeding station, etc Optional according to the technical requirement
Pulverizer Universal pulverizer, Micro pulverizer, Air-jet pulverizer etc Optional according to the technical requirement
Sieving and filtration Vibration Sieve, Linear Sieve, Airflow Sieve etc. Optional according to the technical requirement
Dying Spray drying machine, Airflow drying machine, fluidized bed dryer, belt drying machine, etc Optional according to the technical requirement
Batching system Feeding Powder parts: screw feeding, vibration feeding, belt feeding, rotary valve feeding

Liquid feeding uses pump or pressurized conveying (Can spray the liquid to improve the mixing effect)

 Screw frequency control of motor speed, the opening of the valve can be adjusted. Fast feeding first and then slow feeding and feeding speed can be controlled to ensure batching accuracy and also to improve the batching efficiency.
Weighing Powder parts: weighing bin, generally adopt desiccant method batching, or weight loss method

Liquid measurement, generally uses flowmeter or weighing measurement

 Weighing module using Mettler Toledo products, choose module with different precision  (0.2%, 0.01% or more).as per the requirements.
Conveying system Conveying Meet the requirements of transmission between each equipment in the production line

Vacuum feeding machine, belt conveyor, bucket elevator, screw conveyor and pneumatic conveying system, pipe chain conveyor, etc

 According to the capacity design, materials property, factory layout etc
Storage system Storage Apply to raw materials and finished products, intermediate storage; There are: raw materials silo, finished product hopper, temporary storage hopper before mixing, finished products hopper after mixing, etc 1. Temporary storage before mixing, finished product hopper after mixing, can shorten the time of feeding and discharging of the mixer, to improve the utilization ratio of mixer, reduce production cost, improve the system capacity;

2. Silo is with anti-arch device and can also be made as closed type
Mixing system Mixing Double helix cone mixer, horizontal ribbon mixer, horizontal plough mixer, horizontal non-gravity mixing machine, V/double cone mixer, three-dimensional mixing machine etc. 1, according to the different material and mixing process requirement, equipped with different forms of mixer;

2, optional features: temperature control, pressure control, customized requirements, etc


Packing System Packing Top-open bag packaging machine, valve bag packing machine, ton bag packaging machine, vertical screw packing machine, automatic belt type small bag packaging machine, etc According to the packing specification, accuracy requirement, packing efficiency, material properties etc. Choose the most suitable packing machine.
Electric control system Production monitoring Control circuit structures, relay, PLC, PC - -based, etc

HMI: push button type, digital type etc

CMCC control center, IMCC control center, industrial wireless technology (still developing) etc.



 According to the complexity of the control, the importance of the production data acquisition as well as the customer’s requirements on modernization intelligent degree, select the most appropriate control system.
Dust Collecting System Dust removal Cartridge dust collector, filter bag dust collector, relieve or clean the dust problem According to the dust area, dust emission, material features, to select the rational filter area, filter form.
Steel structure Operation platform Provide  steel structure equipment installation, equipment operation and maintenance of the platform. Detachable design, easy to transport and install, more flexible;

Heavy-duty structure, more stable to be safer for the operator.
Material Sanitary, GMP SUS304，SUS316L，SUS321, normally use stainless steel mirror polished, meet the GMP requirement



 Select according to customer's requirements and different materials‘corrosive tolerance, such as salt industry use 321 or 316 material.
